    Automatic Tension & Extension Spring Forming Machine High Precision

    Ask Lasest Price
    Brand Name : XD
    Model Number : CNC-20
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 30 sets per month
    Delivery Time : 20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Automatic Tension & Extension Spring Forming Machine High Precision

    High precision computerised 3 axis CNC20 extension spring machine 0.30-2.30mm


    XD-CNC20 universal spring forming machine


    Details:
    1. CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The

    mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical

    part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types:

    extruding,punching and molding.

    2. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire

    feeding wheels constitutes of one group, totally two groups.
    3. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller.

    The controller system can save 1000 material numbers. Axis location, feeding data, production

    speed and production output are displayed on the screen. The program data can be set and

    changed easily.
    4. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards

    and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°,

    also can control direction action or designated moves back and forth.
    5. Optional accessories: Cutting tools, rolling axis, safety door.


    Technical Parameter:

    Model:

    XD-CNC20

    Wire diameter:

    φ0.3~2.3 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Quin Servo Motor

    0.75 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1400X550X1600MM

    Wooden Case Dimensions

    1600x600x1700mm

    Machine Weight:

    900Kg

    Gross Weights

    950Kg


    Our advantages:

    1. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.

    2. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine

    3. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.

    Our principle is "Quality first, Customer paramount, Keep improving"

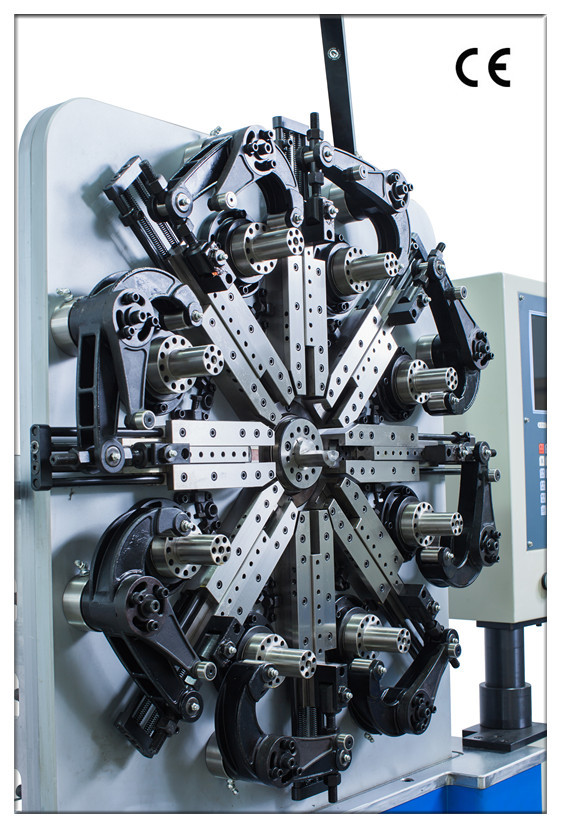

    Machine front board:

    Automatic Tension & Extension Spring Forming Machine High Precision
