    Blue Painting Extension Spring Coiling Machine With Feed Speed 200m / Min

    Ask Lasest Price
    Brand Name : XD
    Model Number : CNC-20
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 30 sets per month
    Delivery Time : 20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Blue Painting Extension Spring Coiling Machine With Feed Speed 200m / Min

    3-4 axis CNC20 high precision extension spring machine 0.30-2.30mm 100pcs/min rate


    XD-CNC20 universal spring forming machine


    Technical Parameter:

    Model:

    XD-CNC20

    Wire diameter:

    φ0.3~2.3 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Quin Servo Motor

    0.75 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1400X550X1600MM

    Wooden Case Dimensions

    1600x600x1700mm

    Machine Weight:

    900Kg

    Gross Weights

    950Kg


    Details:

    1. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller.

    The controller system can save 1000 material numbers. Axis location, feeding data, production

    speed and production output are displayed on the screen. The program data can be set and

    changed easily.
    2. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards

    and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°,

    also can control direction action or designated moves back and forth.
    3. Optional accessories: Cutting tools, rolling axis, safety door.


    Our advantages:

    1. Quality first, QA/QC is one of the most important departments in our company.

    2. We have established customer oriented quality management system, strengthen lasting

    innovation and enhance after-sale services.

    Our principle is "Quality first, Customer paramount, Keep improving"

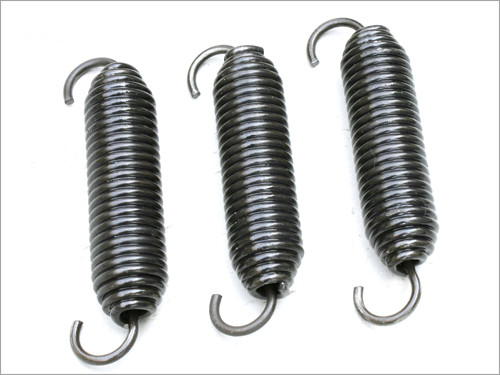

    Applicated products:

    Blue Painting Extension Spring Coiling Machine With Feed Speed 200m / Min
