    5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine

    3-axis XD-CNC35 Universal CNC spring making machine for spring of flat wire


    3-axis XD-CNC35 Universal spring making machine


    Technical Parameter

    Model:

    XD-CNC35

    Wire diameter:

    φ1.8~3.5 mm

    Axes:

    3-4 axes

    Maximum Outside Diameter:

    70mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    150m/min

    Memory Number:

    100 PCS

    Wire Feed Servo Motor:

    5.5 KW

    Cam Servo Motor:

    5.5 KW

    Quin Servo Motor

    1 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1800X140X800MM

    Wooden Case Dimensions

    2000x1600x1200mm

    Machine Weight:

    1300Kg

    Gross Weights

    1400Kg


    Details:
    1. CNC35 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical action types: extruding, punching and molding.
    2. XD-CNC35 universal spring machine is equipped with XinDing spring machine controller. The controller

    system can save 1000 material numbers. Axis location, feeding data, production speed and production

    output are displayed on the screen. The program data can be set and changed easily.
    3. Optional accessories: Cutting tools, rolling axis, safety door.

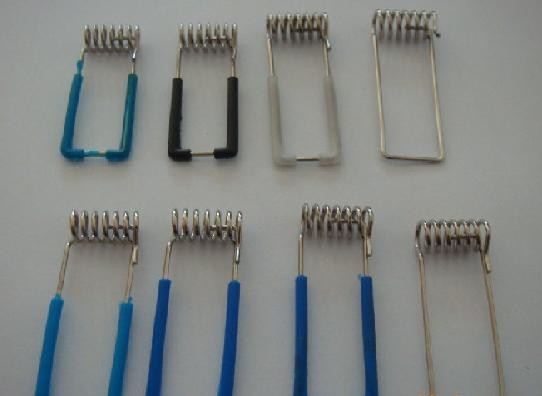

    Sample springs:

    5.5 KW 220V CNC Spring Making Machine / Flat Wire Spring Forming Machine
