    Precision 0.10 ~ 0.80mm CNC Spring Coiling Machine High Speed 550pcs / Min

    Ask Lasest Price
    Brand Name : XinDing
    Model Number : XD-208
    Certification : CE / ISO9001
    Price : Negotiable
    Payment Terms : TT LC
    Supply Ability : 20 sets per month
    Delivery Time : 10 working days after receiving your payment
    • Product Details
    • Company Profile

    Precision 0.10 ~ 0.80mm CNC Spring Coiling Machine High Speed 550pcs / Min

    XD-208 CNC Spring Coiling Machine High Accuracy For Compression Spring


    208 cnc spring coiling machine for the production of compression springs


    Technical Parameter:


    Model:

    XD-208

    Wire diameter:

    φ0.10~0.80mm

    Axes:

    2 axes

    Maximum Outside Diameter:

    20mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    550pcs/min

    Feed Speed

    1200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    1.0KW

    Cam Servo Motor:

    1.0KW

    Power AC:

    3-Phase 220V

    Dimensions (L*D*H):

    900X850X1600MM

    Wooden Case Dimensions

    1000x1050x1750mm

    Machine Weight:

    400Kg

    Gross Weights

    450Kg


    Details:


    Convenient mechanization,high speed and accuracy resulted from servo motion system.

    1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding

    axis and cam axis. The spring machine’s two axis can work independently of synchronously

    according to the program.
    2. The compression spring pitch, outside diameter and cutter are driven by the cam motors. The

    wire feeding is controlled by an independent motor.
    3. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
    4. Servo motion system and servo drive controlled, 5.7" control panel, easy to operate
    5. Cam can be moved clockwise or anti-clockwise; Wire feed length can be change while running the machine.

    6. Computer can automatically detect the temperature of the motor and slow down the running

    speed to protect the motor from overheating.
    7. Computer can automatically decelerate according to the timing when the probe should be used.
    8. Production speed can be increased or decreased at any time running the machine.
    9. Optional accessories: Torsion device, oil seal device, prize-up device, length gauge.


    Product Range:


    This compression spring machine can make various compression springs, wire coil, oil seal springs,

    battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding

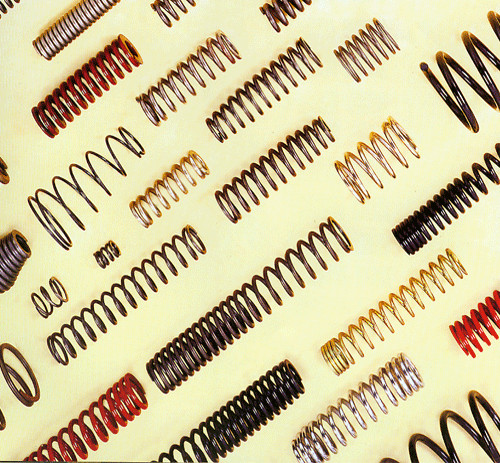

    Sample springs:


    Precision 0.10 ~ 0.80mm CNC Spring Coiling Machine High Speed 550pcs / Min
