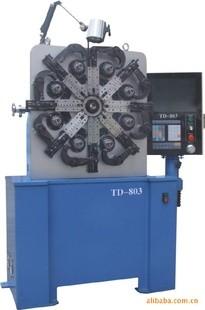

    Computerized Universal Extension Spring Making Machine Three / Four Axis

    Ask Lasest Price
    Brand Name : XD
    Model Number : CNC-20
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 30 sets per month
    Delivery Time : 20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Computerized Universal Extension Spring Making Machine Three / Four Axis

    0.30-2.30mm 3-4 axis CNC20 universal extension spring machine


    XD-CNC20 universal spring forming machine


    Technical Parameter:

    Model:

    XD-CNC20

    Wire diameter:

    φ0.3~2.3 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Quin Servo Motor

    0.75 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1400X550X1600MM

    Wooden Case Dimensions

    1600x600x1700mm

    Machine Weight:

    900Kg

    Gross Weights

    950Kg


    Details:
    1. CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The

    mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical

    part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types:

    extruding,punching and molding.

    2. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    3. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and

    rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can

    control direction action or designated moves back and forth.


    Our advantages:

    1. The factory has about 15 years experience in this field, and the Founder Mr Bai has witnessed the Spring Industry development in China.

    2. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)

    Africa (South Africa, Egypt,Tunisia),

    Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),

    South America (Brazil, Argentina, Colombia, Cuba, Mexico)

    3. We have established customer oriented quality management system, strengthen lasting innovation

    and enhance after-sale services.


    Applicated products:

    Computerized Universal Extension Spring Making Machine Three / Four Axis
