XD-660 six axis CNC spring coiling machine for compression spring
production
XD-660 six axis spring coiling machine
Technical Parameter:
Model: | XD-660 |
Wire diameter: | Φ2.00～6.00 mm |
Axes: | 6 axes |
Maximum Outside Diameter: | 90 mm |
Maximum Feeding Length: | unlimited |
Maximum Manufacture Speed: | 100pcs/min |
Feed Speed | 80m/min |
Memory Number: | 1000PCS |
Wire Feed Servo Motor: | 15 KW |
Upper Cutter Servo Motor: | 3.8 KW |
Bottom Cutter Servo Motor: | 3.8 KW |
Pitch Servo Motor: | 2.7 KW |
OD Servo Motor: | 2.7 KW*2 |
Power AC: | 3-Phase 220V |
Dimensions (L*D*H): | 1600X1200X1900mm |
Wooden Case Dimensions | 1800x1400x2100mm |
Machine Weight: | 2500Kg |
Gross Weights | 3000Kg |
Details:
Convenient mechanization,high speed and accuracy resulted from
servo motion system.
1. XD-660 compression spring machine is a 6- axis spring machine
consisting of wire feeding axis ,upper cutter axis, bottom cutter
axis, pitch axis.
we add a spring OD controlling axis, all these axis assures to make
most precise springs
with most efficiency.
2. The spring machine cutter can be adjusted inside and outside on
computer easily and flexibly.thus
save manual work.
3. Servo motion system and servo drive controlled, 15" control
panel, easy to operate
4. All necessary work relating to spring production can be
accomplished by finger on computer panel.
5. Computer can automatically detect the temperature of the motor
and slow down the running speed
to protect the motor from overheating.
6. Computer can automatically decelerate according to the timing
when the probe should be used.
7. Production speed can be increased or decreased at any time
running the machine.
8. Optional accessories: length gauge.
Product Range:
This spring coiling machine makes various kinds of compression
springs, wire coil, taper springs,
double-taper springs, safe springs, clip spring as well as various
simple wire molding, its products
can be applied to military, construction, motorcycles ect.
Our advantages:
1. The factory has about 15 years experience in this field, and the
Founder Mr Bai witnessed the
Spring Industry development in China.
2. A complete production line from Design, Own Processing centre
for spareparts & worktable,
Importing Japan Sanyo and Yaskawa motors, Importing TaiWan Brand
controlling system, Finishing operation, Inspection centre, Testing
team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending
machine to processing the wire
diameter from 0.15mm to 8.0mm, especially including the new
technology of the Camless machine
with wire rotation function and the applying of the Camera Spring
Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in
our company.
6. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)
Africa (South Africa, Egypt,Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
7. We have established customer oriented quality management system,
strengthen lasting innovation
and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep
improving"

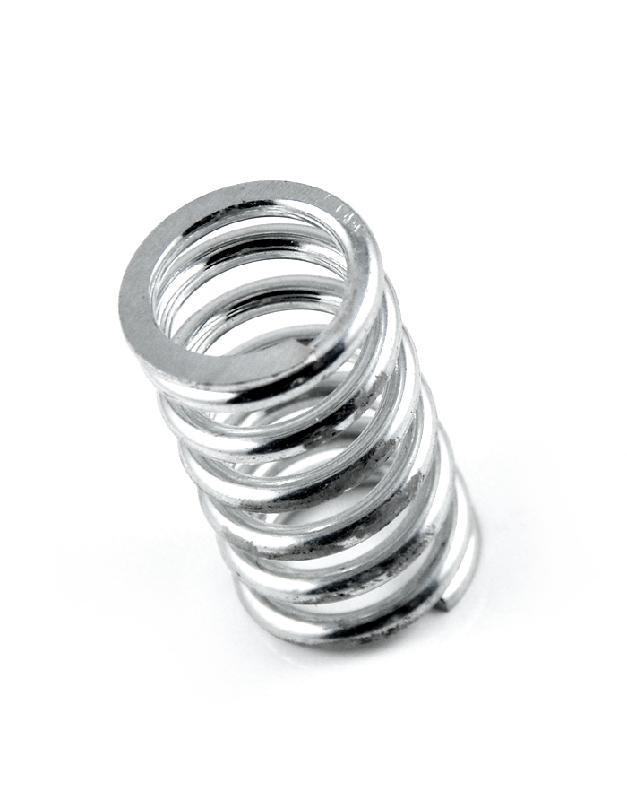

Applicated products:
