    Energy Efficient 40mm Extension Spring Machine / CNC Spring Coiler

    Ask Lasest Price
    Brand Name : XD
    Model Number : CNC-20
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 30 sets per month
    Delivery Time : 20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Energy Efficient 40mm Extension Spring Machine / CNC Spring Coiler

    3-4 axis CNC20 extension spring machine with high precision 0.30-2.30mm steel wire 100pcs/min


    XD-CNC20 universal spring forming machine


    Technical Parameter:

    Model:

    XD-CNC20

    Wire diameter:

    φ0.3~2.3 mm

    Axes:

    3 axes

    Maximum Outside Diameter:

    40mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    2.7 KW

    Cam Servo Motor:

    2.7 KW

    Quin Servo Motor

    0.75 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1400X550X1600MM

    Wooden Case Dimensions

    1600x600x1700mm

    Machine Weight:

    900Kg

    Gross Weights

    950Kg


    Details:

    1. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
    2. XD-CNC20 universal spring machine is equipped with XinDing spring machine controller. The

    controller system can save 1000 material numbers. Axis location, feeding data, production speed

    and production output are displayed on the screen. The program data can be set and changed

    easily.
    3. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and

    rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can

    control direction action or designated moves back and forth.
    4. Optional accessories: Cutting tools, rolling axis, safety door.


    Our advantages:

    1.The factory has about 15 years experience in this field, and the Founder Mr Bai witnessed the

    Spring Industry development in China.

    2. Quality first, QA/QC is one of the most important departments in our company.

    3. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia,Turkey)

    Africa (South Africa, Egypt,Tunisia),

    Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),

    South America (Brazil, Argentina, Colombia, Cuba, Mexico)

    4. We have established customer oriented quality management system, strengthen lasting innovation

    and enhance after-sale services.

    Our principle is "Quality first, Customer paramount, Keep improving"

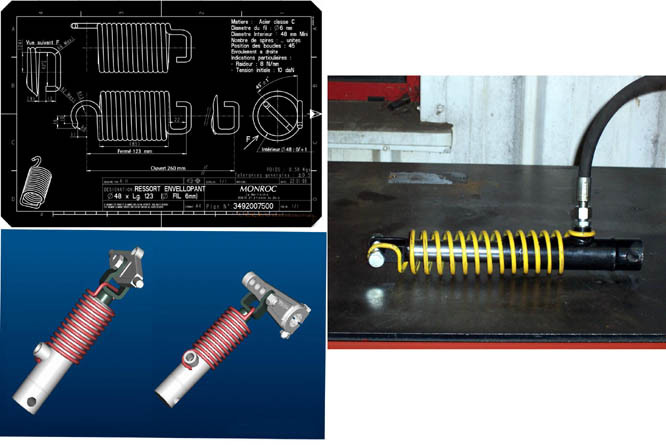

    Applicated products:

    Energy Efficient 40mm Extension Spring Machine / CNC Spring Coiler
