    0.10 ~ 0.80mm Compression Spring Machine Consisting Of Wire Feeding Axis / Cam Axis

    Ask Lasest Price
    Brand Name : XinDing
    Model Number : XD-208
    Certification : CE / ISO9001
    Price : Negotiable
    Payment Terms : TT LC
    Supply Ability : 20 sets per month
    Delivery Time : 10 working days after receiving your payment
    • Product Details
    • Company Profile

    0.10 ~ 0.80mm Compression Spring Machine Consisting Of Wire Feeding Axis / Cam Axis

    Compression Spring Machine High Accuracy For Coil Spring XD-208 Model


    208 cnc spring coiling machine for the production of compression springs


    Technical Parameter:

    Model:

    XD-208

    Wire diameter:

    φ0.10~0.80mm

    Axes:

    2 axes

    Maximum Outside Diameter:

    20mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    550pcs/min

    Feed Speed

    1200m/min

    Memory Number:

    1000PCS

    Wire Feed Servo Motor:

    1.0KW

    Cam Servo Motor:

    1.0KW

    Power AC:

    3-Phase 220V

    Dimensions (L*D*H):

    900X850X1600MM

    Wooden Case Dimensions

    1000x1050x1750mm

    Machine Weight:

    400Kg

    Gross Weights

    450Kg


    Details:

    Convenient mechanization,high speed and accuracy resulted from servo motion system.

    1. XD-208 compression spring machine is a 2-axis spring machine consisting of wire feeding axis and cam axis. The spring machine’s two axis can

    work independently of synchronously according to the program.

    2. The spring machine cutter can be adjusted inside and outside of the cabinet easily and flexibly.
    3. Cam can be moved clockwise or anti-clockwise; Wire feed length can be change while running the machine.


    Product Range:
    This compression spring machine can make various compression springs, wire coil, oil seal springs,

    battery springs, taper springs.

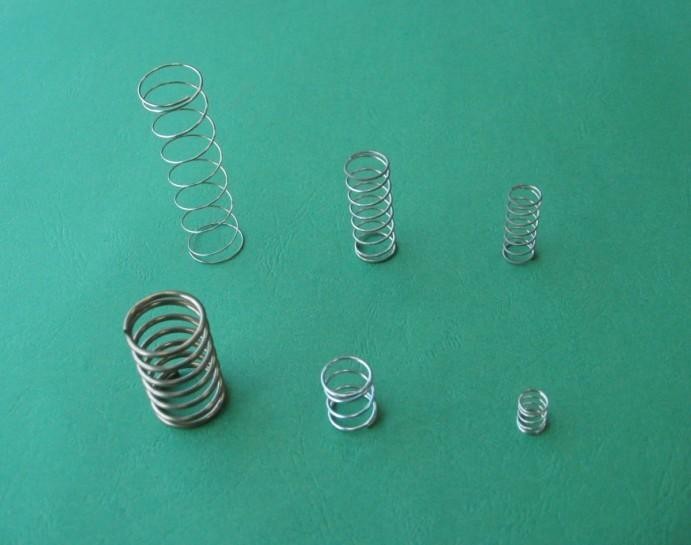

    Sample springs:

    0.10 ~ 0.80mm Compression Spring Machine Consisting Of Wire Feeding Axis / Cam Axis
