    Computerized CNC Spring Forming Machine With Production Rate Displayed On The Screen

    Ask Lasest Price
    Brand Name : XD
    Model Number : CNC-35
    Certification : CE / ISO9001
    Payment Terms : TT LC
    Supply Ability : 20 sets per month
    Delivery Time : 20 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Computerized CNC Spring Forming Machine With Production Rate Displayed On The Screen

    3-4 axis computerised CNC-35 universal CNC spring forming machine with production rate 1.80-3.50mm


    CNC-35 universal purpose spring making machine


    Technical Parameter:


    Model:

    XD-CNC35

    Wire diameter:

    φ1.8~3.5 mm

    Axes:

    3-4 axes

    Maximum Outside Diameter:

    70mm

    Maximum Feeding Length:

    unlimited

    Maximum Manufacture Speed:

    100pcs/min

    Feed Speed

    150m/min

    Memory Number:

    100 PCS

    Wire Feed Servo Motor:

    5.5 KW

    Cam Servo Motor:

    5.5 KW

    Quin Servo Motor

    1 KW

    Power AC:

    220V 3P 50/60Hz

    Dimensions (L*D*H):

    1800X140X800MM

    Wooden Case Dimensions

    2000x1600x1200mm

    Machine Weight:

    1300Kg

    Gross Weights

    1400Kg


    Details:

    1. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, totally two groups.

    2. XD-CNC35 universal spring machine is equipped with XinDing spring machine controller. The controller system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.

    3. Optional accessories: Cutting tools, rolling axis, safety door.


    Our Products:

    Compression spring machines: XD-208, XD-220, XD-230, XD-235, XD-345 series and versatile spring machine XD-CNC10, XD-CNC20 and XD-CNC35 universal series.


    Why us:

    · 13 years of experience in this line

    · All machines recieve good comments from customer

    · Independent R&D ability

    · Always happy to serve and work with our customers


    To order:

    · Show us what you need

    · Provide the suitable machine as per your requirement

    · Arrange production after 30% payment

    · Ship the goods after full payment

    · Following your machine until it reaches its destination


    More of us:

    Dongguan Xingding Mechanical Equipment Co., Ltd.

    Factory Add: Dabandi Industry estate, Humen Town, Dongguan City, Guangdong Province.

    Web: www.cncjd.com / www.springxd.com

    Tel: 0086-0769-85560118/81511865

    Contact person: Ralph chen

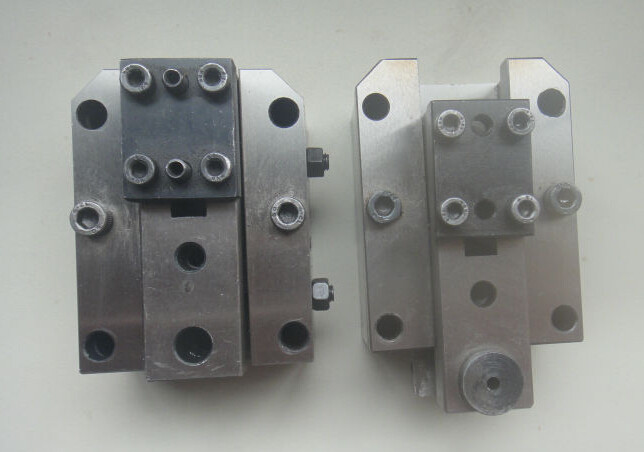

    Tooling presentation:
