    High precision and accuracy camless eleven axis spring former for spring and wire forms making

    Ask Lasest Price
    Brand Name : XD-1120
    Model Number : XD
    Certification : CE
    Price : Negotiable
    Payment Terms : TT LC
    Supply Ability : 20 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    High precision and accuracy camless eleven axis spring former for spring and wire forms making

    Introduction:


    Special camless design equipped with free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.

    Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
    Intuitive graphics user interface.
    Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.
    Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

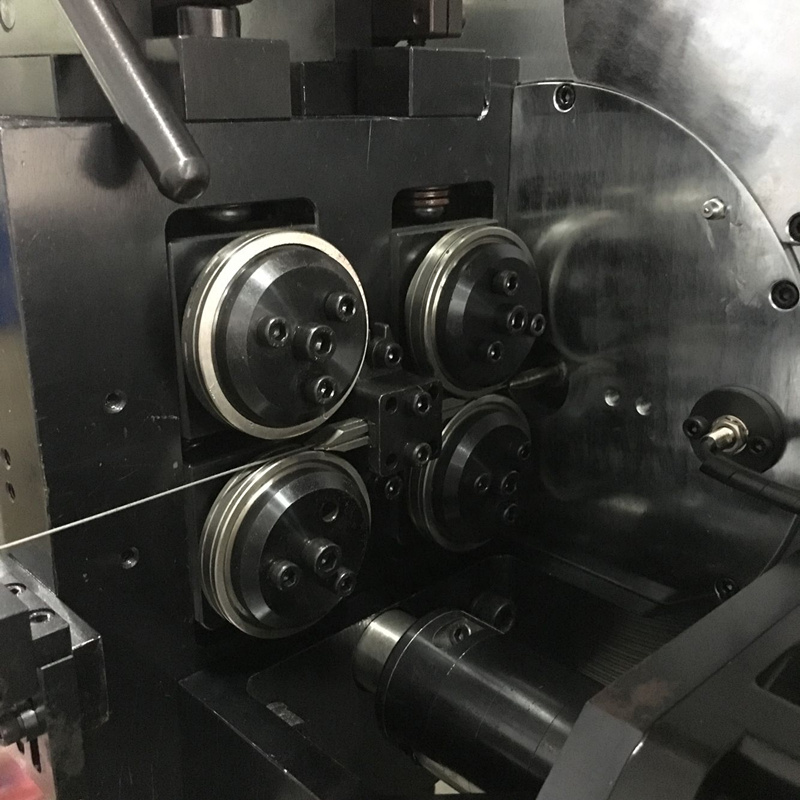

    Machine wire feeding part:



    Technical parameter:


    1.Axis count:11 axis
    2.Wire size:¢0.30~2.0mm
    3.Max outside diameter:¢40mm
    4.Wire feed motor:2.7kw
    5.Sliding arm motor×8:0.75kw
    6.Quill motor:0.75kw
    7.Spinner motor:0.4kw
    8.Computer display:Chinese/English
    9.Max wire feed:99999.99mm
    10.Min wire feed:0.02mm
    11.Computer memory:500 programs
    12.Dimensions:1450*550*1650mm
    13.Weight:850kg
    14.Power ac:3-phase 220v 50hz

    How to place the order


    • Show us the drawing or picture of your samples
    • Work out the competitive price for you
    • Make a proforma invoice
    • Arrange the mass production after receiving your 30% payment
    • Ship the goods about 10 days after receipt the whole payment
    • Following your goods until you receive them and satisfy with the quality.

    High precision and accuracy camless eleven axis spring former for spring and wire forms making


    • OEMis welcome, just give us your detailed specification or drawings
    • Promptly delivery and make samples quickly.
    • We are the leading manufacturer specialized in designing and manufacturing different kinds of spring machine in China with the experience of more than 12years
    • Competitive Advantage: Quality first&Credit Upmost

    Workshop and office:


    High precision and accuracy camless eleven axis spring former for spring and wire forms makingHigh precision and accuracy camless eleven axis spring former for spring and wire forms makingHigh precision and accuracy camless eleven axis spring former for spring and wire forms making
