    High Precision Six Axis CNC Spring Coiling Machine 1000pcs / Min Production Rate

    Ask Lasest Price
    Brand Name : XD
    Model Number : XD-608
    Certification : CE
    Supply Ability : 20 sets per month
    Price : Negotiable
    Payment Terms : TT LC
    • Product Details
    • Company Profile

    High Precision Six Axis CNC Spring Coiling Machine 1000pcs / Min Production Rate


    Six Axis CNC Spring Coiler with High Precision and 1000pcs / min production rate


    Machine features:


    1. Integrated design of cutter and mandrel.

    2. Fieldbus controller, with fast reaction speed and good synchronism.

    3. Faster conversion speed of left and right hand spring.

    4. Computer can automatically detect the temperature of motor and slow down its running speed to protect motor from overheating.

    5. Computer can automatically decelerate according to the timing when probe should be used.

    6. Prodution rate can be increased or decreased at any time of operation.

    7. Max speed reaches 1000pcs/min, absolutely a nice equipment for small coil springs.


    Technical parameters:


    ModelXD-608
    Wire Diameter0.1-0.8mm
    O.D¢25mm
    Production Rate1000pcs/min
    Feed Lengthunlimited
    Wire Feed0.75kw
    Cutter0.4kw*2
    OD Axis0.4kw
    Pitch0.4kw
    Arbor back-and-forth0.4kw
    Monitor DisplayChinese/English
    Max. Value99999.99mm
    Min.Value0.02mm
    Memory150 Program Max
    999 Lines for each program
    Machine Dimension90*70*135cm
    Machine Weight500kgs
    Power220v 3p 50/60hz

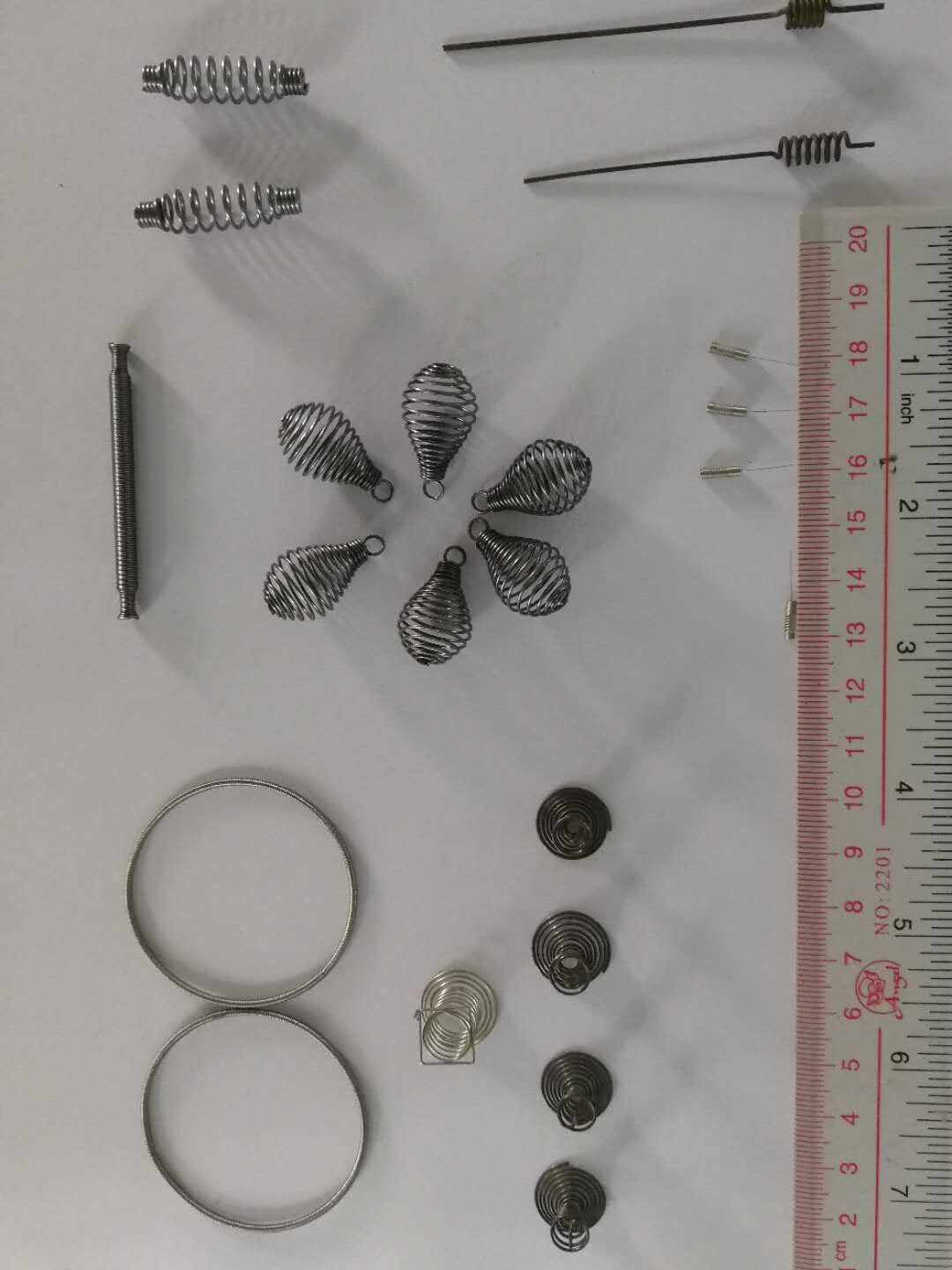

    Sample spring:



    Production toolings:
